LED Area Light, Selectable 170W/200W/220W/240W, 4000K, 36,000 Lumens, 120-277 VAC, Shorting Cap Included

LED Area Light - 170W/200W/220W/240W Selectable Wattage - 4000K Daylight - Max. 36,000lm - DLC 5.1 Premium

Product Description

The Lumens Depot LED Area Light is a powerful, energy-efficient outdoor fixture designed for large-scale commercial and industrial environments. With wattage selectability (170W/200W/220W/240W) and an output of up to 36,000 lumens, this light delivers customizable performance for parking lots, roadways, campuses, and more.

Engineered with advanced optics, this fixture offers optional Type III, IV, and V beam distributions for tailored lighting coverage. Its rugged die-cast aluminum housing and dark bronze finish ensure long-term durability, while a built-in 10kV surge protector and flow-through heatsink design enhance reliability and thermal management.

Equipped with 0-10V dimming capability, this LED area light supports energy-saving controls and is photocell-ready with an included shorting cap. Certified to DLC 5.1 Premium standards, it ensures top-tier efficiency, rebates eligibility, and performance.

 Key Features

• Selectable Wattage: 170W / 200W / 220W / 240W

• Luminous Output: Up to 36,000lm (150lm/W)

• CCT: 4000K Daylight

• Optics: Type III / IV / V Beam Distributions (Optional)

• Dimming: 0-10V Compatible

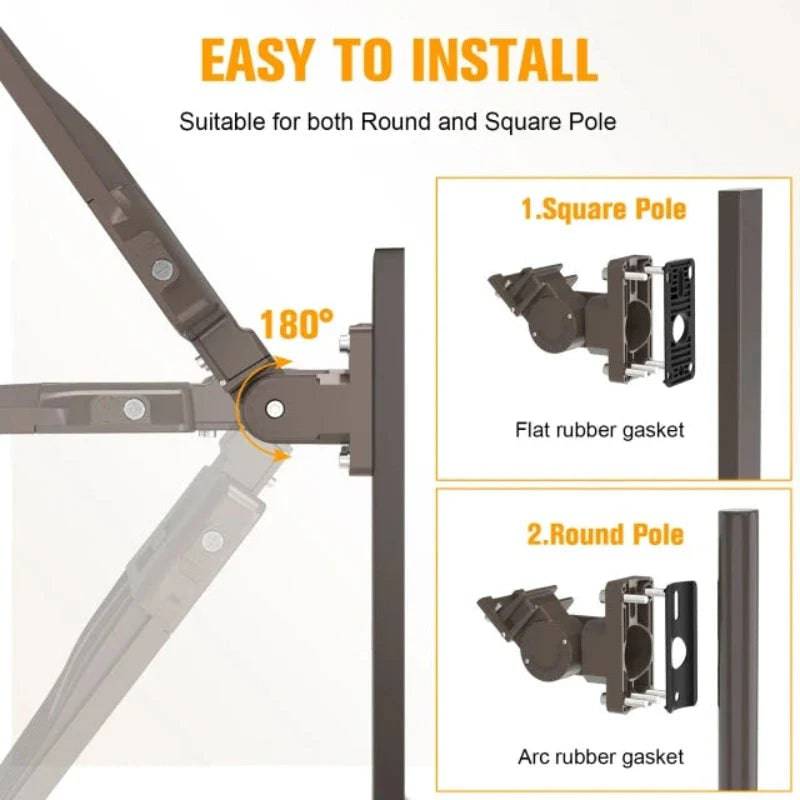

• Mount Type: Universal Mount (Adjustable Square& Round Pole Mount)

• Voltage Range: AC120-277V

• Color Rendering Index (CRI): Ra70

• Power Factor: ≥0.95

• Total Harmonic Distortion (THD): ≤20%

• Surge Protection: 10kV Standard

• Finish: Dark Bronze Powder Coated

• Construction: Die-Cast Aluminum Housing

• Ambient Operating Temp: -40°C to +45°C

• Photocell-Ready: Includes Shorting Cap

• Wire Length: 1.8ft Power Cord

• Certifications: DLC 5.1 Premium, UL/cUL Listed

• Warranty: 5-Year Limited Warranty

  Ideal Applications

• Commercial Parking Lots

• Public Roadways & Highways

• Industrial Complexes

• School Campuses

• Shopping Centers

• Security & Perimeter Lighting

• Municipal & Government Properties

Boost safety, visibility, and energy savings with Lumens Depot’s reliable, high-output LED Area Light — engineered for peak performance and maximum flexibility in demanding outdoor environments.
