LED Area Light, Selectable 80W/100W/120W/150W and CCT 3000K/4000K/5000K, 22,500 Lumens, 120-277 VAC, Shorting Cap Included

LED Area Light – 80W/100W/120W/150W Selectable Wattage – Up to 22,500lm – 3000K/4000K/5000K CCT Tunable – Shorting Cap Included – DLC 5.1 Premium - Black Finish

Product Description

Upgrade your outdoor lighting with the Lumens Depot LED Area Light, a high-efficiency, power and CCT selectable fixture designed to deliver superior performance and energy savings in a wide range of commercial and industrial applications. This fixture allows you to choose from four wattage options (80W/100W/120W/150W) and three color temperatures (3000K/4000K/5000K) to meet diverse site lighting requirements, all from a single SKU.

Producing up to 22,500 lumens at an exceptional 150 lm/W, this LED area light provides crisp, uniform illumination with a Type III distribution, ideal for parking lots, roadways, campuses, and building perimeters. Its 0-10V dimming capability supports energy management systems, while the included shorting cap makes it ready for photocell or smart sensor integration.

Crafted with a rugged, die-cast aluminum housing in a durable black finish, this fixture offers excellent thermal management with an integrated flow-through heat sink, ensuring optimal performance in harsh environments from -40°C to 45°C. It also features a 1.8ft power cord for flexible installation and DLC 5.1 Premium certification for maximum rebate eligibility.

Key Features

• Selectable Wattage: 80W / 100W / 120W / 150W

• Selectable CCT: 3000K / 4000K / 5000K (Tunable)

• Maximum Output: Up to 22,500 lumens

• Efficiency: 150 lm/W

• Input Voltage: 120-277 VAC

• Dimming: 0-10V dimmable

• Optics: Type III light distribution

• Surge Protection: 10kV (optional)

• Photocell Ready: Shorting cap included

• Housing: Die-cast aluminum with black powder coating

• Wire Length: 1.8ft UL-rated power cord

• Color Rendering: CRI ≥70

• Certifications: DLC 5.1 Premium, UL, RoHS

• Warranty: 5 Years

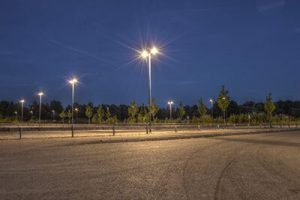

Ideal Applications

• Commercial Parking Lots

• Street & Roadway Lighting

• Campuses and Business Parks

• Outdoor Walkways & Perimeters

• Industrial & Municipal Lighting

Trust Lumens Depot for high-performance lighting solutions that combine flexibility, durability, and energy savings—all in one smart, rebate-ready fixture.
